Diameter Tolerance......................±.005"
Length Tolerance..........................±3%
Resistance Tolerance..................+10 -5%
Wattage Tolerance......................+5 -10%
Heated Length Tolerance..........Consult CEM Electric
|
|

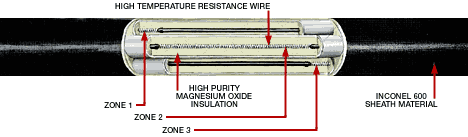

The diagram illustrates a nine zone platen with six, three zone X-ROD Insertion Heaters. Each zone can be sensed and controlled individually. A platen with 6 elements can be designed with 6 zones utilizing a X-ROD with 2 independent zones. For even more precise control, the platen can be comprised of even more zones, depending upon what's practical.
Nominal
X-ROD
Diameter |
Platen
Hole
Size |
| .495" |
9/16" or 5/8" |
| .685" |
3/4" or 7/8" |
| .935" |
1" or 1-1/4" |
Part
Number |
Zones |
Num.
Wires |
Max.
Voltage |
Max.
Amps |
| PCW-6570-P |
2 |
4 |
600 |
30 |
| PCW-6570P |
3 |
6 |
600 |
30 |
Other plugs are available for
single zone applications. |
